Changelog
A more detailed changelog can be found on github.

Join our discord server.

See the documentation for further details.

Known issues.

Try it online in your browser: voxedit

Watch a video about an animation created in vengi-voxedit.

0.0.24 (2023-03-12)
General:

• Support using palette cvar as a destination palette again by setting voxformat_createpalette to false

• Added new image formats from SOIL2 (DDS, PKM, PVR)

• Added FBX read support

• Improved texture lookup for mesh formats

• Added multiple color reduction algorithms and exposed them to the user by the cvar core_colorreduction

• Fixed several issues with AceOfSpades vxl format - switched to libvxl for loading and saving

• Fixed splitting volumes even if not needed (off-by-one error)

• Fixed multi-monitor support

• Fixed colors in the tree generator

• Improved the key binding handling and made it more flexible

• Added support for loading minetest mts files

• Fixed Command&Conquer vxl format writing issue

• Added own format with the extension vengi

• Added basic alpha support

• Fixed saving the keybindings with multi-click

• Improved keybinding and ui setting saving (added a version)

• Fixed invalid transform on re-parenting a node

• Refactored the file dialog

• Fixed issue in saving MagicaVoxel vox files under some special conditions

• Implemented basic transparency support for voxels

• Fixed invalid clamping for uv based pixel lookup (mesh imports)

• Update renderer to only use uniform buffers

• Fixed rendering issue for windows users

• Fixed fullscreen issues for windows users

• Extended lua script bindings to allow to render of text as voxels

• Support GLES3 rendering

VoxConvert:

• Show supported palette and image formats in help screen (--help)

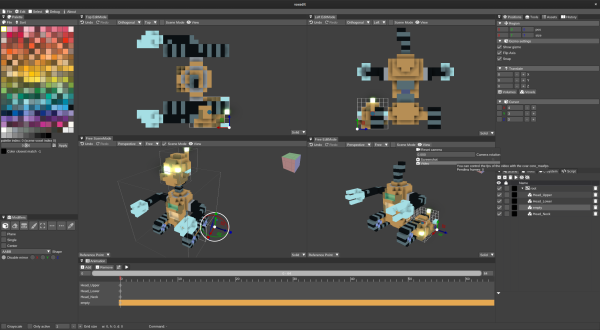

VoxEdit:

• Disable the animation window if there are no animations to show

• Allow showing the color picker in the palette panel

• Reworked the modifiers panel

• Made undo/redo more visible

• Switched the camera modifier to the right side of the viewport

• Fixed diffuse and ambient color settings mix-up

• Merged layer and scene graph panel into one

• Several gizmo-related fixes and improvements

• Added simple UI mode, which removes some panels

• Fixed a few mementos (undo/redo) related issues

• Added templates to the menu (robo, chess, head and chr_knight)

• Allow controlling the number of viewports

• Allow defining pre-defined region sizes (see ve_regionsizes cvar)

• Some ui actions are only available in edit mode

• Edit mode has support for the gizmo now - you can shift the volume boundaries

• Highlight copy&paste volume region

• Visually disable some buttons if they won't work in the current mode anyway

• Don't execute actions for hidden nodes

• New keybindings

• Allow sorting of the palette colors by hue, saturation, or brightness

• Allow to select and drag keyframes in the animation timeline

• Export animations as AVI

• Allow importing a whole directory into a scene

• Allow selecting all node types in the scene graph panel

• Allow editing node properties

• Added voxel cursor tooltips about the position in the volume

• WASM/HTML5 port
